Lab: War Dialing

Due: Wednesday, November 11 at 11:59pm (one week after it is assigned) Worth: 8 points

Starter code: github.com/rtealwitter/lab-wardialing

In this lab you will war dial every web server in the DPRK (North Korea) and count how many web servers the country has connected to the internet.

Is this allowed?

War dialing connects to computers in a range of internet addresses and requests a webpage from each one. It does not attempt to gain unauthorized access. Search engines routinely scan the internet to find new websites for their results. The generation of search engines before Google, including Yahoo! and AltaVista, called this process “spidering,” and Google still uses that term. We will keep calling it war dialing.

Every computer connected to the internet is scanned regularly. Some security companies include counts of these scans in reports sold to customers.

Learning objectives.

1. Review the requests library.
2. Review working with exceptions.
3. Learn how to monitor the internet connectivity of a country or organization.
4. Practice learning unfamiliar network technology from documentation.

War dialing

The name comes from the movie WarGames, in which David Lightman uses war dialing to stumble onto a US military nuclear-control computer:

WarGames is one of the options for the course’s optional computing-and-society extra credit.

A Stack Exchange discussion examines how realistic the movie is. The short version: the technical details of war dialing in the film are correct, but the US has never connected nuclear command and control computers to the internet, precisely to prevent the scenario the movie imagines. You can find plenty of public information about US networks for classified information, such as SIPRNet (for operations classified SECRET), JWICS (TOP SECRET), and NSANet (TOP SECRET/SCI). Nuclear secrets may be shared on some of these, but nuclear command and control infrastructure is required to be air gapped from every network to prevent remote attacks.

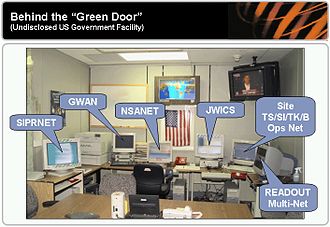

Wikipedia shows what a workstation looks like for someone who works with classified systems:

There is a separate computer for each network. They are physically disconnected so a software bug on one cannot leak top-secret information onto the internet.

From phone numbers to IP addresses. WarGames came out in 1983, before the internet existed. At the time computers connected to each other by calling over ordinary telephone lines, so David Lightman scans the phone numbers of a region to find the “online” computers there. Today computers use the IPv4 protocol, which was first deployed to an early internet called the ARPANET in 1983, the same year the movie was released. Dial-up internet, which connects an ordinary phone line to the IPv4 internet, was invented in 1992.

IP addresses and domain names

An IP address is four 8-bit numbers separated by periods, and just like a domain name it can host a website. To see this, visit https://142.250.68.14 and notice that you are redirected to https://google.com: that address is one of Google’s. You can reach any server either by its IP address directly or by its more human-readable domain name.

Whenever you use a domain name, the browser uses the Domain Name System (DNS) to look up the matching IP address before it makes the actual connection. The IP address is what is needed to contact a computer, because it is tied to the server’s physical location; your ISP has to know where a site physically lives in order to route your request there. The site https://www.geolocation.com displays an address’s location: look up 142.250.68.14 to see its location listed as Mountain View, California.

Finding your own IP address. You will need your own IP address for this lab. Visit https://whatismyipaddress.com/ to find it. If you are on a shared or campus network, many computers are likely sharing one address through a technology called Network Address Translation (NAT). NAT exists because there is only a limited supply of IPv4 addresses; we are running out, and new addresses are becoming expensive.

Finding an organization’s IP addresses. To war dial an organization you first need all of its IP addresses, which is public information. The site https://ipinfo.io maps an organization to the addresses it owns. Every organization on the internet has an Autonomous System Number (ASN), and from the ASN you can list all of its IP addresses: for example Google is AS15169. To find the addresses for a whole country, visit https://ipinfo.io/countries and click one; it lists every ASN registered there. The United States has over 30,000 ASNs, the most of any country; the DPRK has exactly one, the fewest of any country.

The DPRK’s IP addresses. The DPRK’s lone ASN belongs to the Ryugyong-dong ISP, listed at AS131279. Its addresses are given under the netblock field of the “IP Address Ranges” table, which looks something like:

Netblock	Company	Num of IPs
175.45.176.0/24	Ryugyong-dong	256
175.45.177.0/24	Ryugyong-dong	256
175.45.178.0/24	Ryugyong-dong	256
175.45.179.0/24	Ryugyong-dong	256

Each number in an IP address is 8 bits, so it ranges from 0 to 255. The /24 on each netblock is a subnet mask. Fully understanding subnet masks takes a bit of discrete math, but the /24 here means Ryugyong-dong owns the next 256 addresses, every IP whose last number runs from 0 to 255. Across all four netblocks, the DPRK owns every address from 175.45.176.0 through 175.45.179.255, which is 1024 addresses in total. Because every server on the internet needs its own address, at most 1024 servers from the DPRK can be online at once. In the rest of this lab you will write a Python program that connects to each of those addresses to see which are hosting a webpage.

Programming instructions

1. Connect to a known DPRK site. Start with http://kcna.kp, the site of the Korean Central News Agency, the official newspaper of the DPRK. The .kp country-code top-level domain is assigned to the DPRK.

Before scraping a webpage, view it in your browser to check for connection problems. If Python later raises an error, you can distinguish a Python error from a general connection problem. Open http://kcna.kp in the browser now.

Note on http:// versus https://. The scheme above is http://, not https://. If you visit https://kcna.kp you get a browser security warning because the KCNA site uses an old encryption standard that is vulnerable to a man-in-the-middle attack. Mike Izbicki, who wrote this lab, has taught North Korean students how to implement modern encryption, and has helped fix parts of the KCNA site so that it could be indexed by Google and archived by the Internet Archive, which lets diplomats and analysts learn about the DPRK more easily. Organizations like Amnesty International and Human Rights Watch consider strong encryption a human right. If you get a connection error, first check that you used http:// and not https://.

Confirm you can reach the site from Python:

import requests
r = requests.get('http://kcna.kp')
print('r.status_code=', r.status_code)

If everything worked, you should see:

r.status_code= 200

2. Connect by IP address instead of domain name. Find the IP address for http://kcna.kp by visiting https://whatismyip.live/dns/kcna.kp; it will look like 175.45.176.XXX with the XXX filled in. Try the address in your browser first, at http://175.45.176.XXX; you should see the KCNA page. Then connect from Python, replacing XXX with the right numbers:

import requests
r = requests.get('http://175.45.176.XXX')
print('r.status_code=', r.status_code)

You should get:

r.status_code= 200

3. Handle addresses with no server. The DPRK address 175.45.176.10 has no web server listening on it. Try to connect to it:

r = requests.get('http://175.45.176.10')

After about a minute you get a long error ending in something like:

requests.exceptions.ConnectTimeout: HTTPConnectionPool(host='175.45.176.10', port=80): Max retries exceeded with url: / (Caused by ConnectTimeoutError(...'Connection to 175.45.176.10 timed out.'))

By catching this exception with try/except, you can tell whether a server exists at a given address. This is still slow, because requests.get can wait a very long time for a reply that will never come. Read the documentation and find how to make the call wait at most 5 seconds for a response (search the page for the word “timeout”). Five seconds is long enough to be confident a real server would have answered, but short enough that scanning finishes in a reasonable time.

4. War dial. Fork and clone the starter repo, github.com/rtealwitter/lab-wardialing, then open wardial.py and complete the functions marked with FIXME. Complete and test these functions one at a time:

• is_server_at_hostname(hostname) returns True if requests.get can connect to the hostname (you add the scheme, and set the 5-second timeout from step 3).
• increment_ip(ip) returns the next IPv4 address, handling wrap-around like '1.2.3.255' to '1.2.4.0'.
• enumerate_ips(start_ip, n) returns the next n addresses starting at start_ip.

Each function comes with doctests; write the body until the doctests pass. Use enumerate_ips to build the list of all 1024 DPRK addresses, and filter that list down to the ones running a web server with is_server_at_hostname. The completed program prints every DPRK IP address that is hosting a web server.

Hint. Scanning is slow: 1024 addresses at up to 5 seconds each is over an hour in the worst case. Print each address as you scan it to monitor progress. Expect the final count to fall between 10 and 50.

The final filter is the accumulator loop from the reading, so you can write it as a loop or a one-line list comprehension:

dprk_ips_with_servers = [ip for ip in dprk_ips if is_server_at_hostname(ip)]

Parallel scanners can make all 1024 connections at once and finish in seconds; an ordinary laptop can scan the internet’s 4.2 billion addresses in under an hour that way. This lab uses a sequential version because parallel programming is beyond its scope.

Running the tests and submitting

Run the doctests from your terminal:

$ python3 -m doctest wardial.py

No output means every test passed. When a test fails, the output shows its Expected and Got values. Because the scanning code at the bottom of the file takes a long time to run, keep it out of the doctests by guarding it so it only runs when you run the file as a script:

if __name__ == '__main__':
    ...

Once the doctests pass, your submission repository must contain:

1. your completed wardial.py, and
2. a README.md with a one-sentence description of the project and the list of DPRK IP addresses that host web servers, shown as a terminal codeblock of the command you ran and its output:

$ python3 wardial.py
dprk_ips_with_servers= ['175.45.176.xxx', '175.45.177.xxx', ...]

The live scan is not repeated by the grader because server availability changes and the scan takes too long. You are still responsible for letting it finish and copying its output into README.md. Push wardial.py and README.md, then submit the repository and branch to the Gradescope Programming Assignment. Gradescope uses mocked requests to check the networking logic deterministically and checks the documented scan format; its instructor-owned tests are authoritative. Any GitHub Action is preliminary feedback. Fix, push, and resubmit until the offline checks pass.

Shodan

Read this section; there is nothing to submit.

shodan.io is a search engine for IP addresses that automates war dialing and other scanning tasks. It has a ready-made list of every device on the DPRK’s addresses, which includes more than web servers, so it returns a few more results than your scan will.

Shodan also scans servers for known security holes. The North Korea results include servers with known remote code execution (RCE) vulnerabilities, which can let an attacker take over a machine remotely. North Korea has been accused of hosting malware on its own sites, but the security firm Kaspersky found evidence that a non-North-Korean actor had taken over the pages instead; The Hill covers the policy angle. If you dig through results like these for any organization, you can often find internal tools that were never meant to be public.

A written tutorial on Shodan and two DEFCON talks provide more information: [1] [2].
